Electronic Door Lock DC Worm Gear Motor , 5V DC Gear Motor High Precision

Name: Electronic Door Lock DC Worm Gear Motor 5V DC Gear Motor High Precision
Brand: Hofon
Price: 1 USD

Brand Name : Hofon

Model Number : GM1024-N20VA

Certification : RoHS/ISO9001:2000/ISO14001/TS16949

Place of Origin : ShenZhen China

MOQ : 2000PCS

Price : Negotiation

Supply Ability : 5000KPCS/Month

Delivery Time : 35Days

Packaging Details : Carton Box

Voltage Range : 5V Or Customized

Material : Metal Gear High precision gear

Diameter : 24mm

No Load Speed : 98RPM

No Load Current : 32mA

Rated Load Torque : 422g.cm

Rated Load Speed : 77RPM

Rated Load Current : 122mA

Gear Ratio : 150:1

Contact Now

24mm 5V / 6V / 12V Metal Gear-box motor DC Gear Motor Low Noise For Door Lock Robot

DC Worm Gear-Box Motor
Diameter : Φ24.0mm
Output : APPROX 0.1~1.0W
Noise Level : Less than 50dB
Low noise, stable performance, quality assurance

Typical Applications

Fully automatic electronic door lock
Office Automatic Equipments
Printer/paper Feeder
Bank Equipments Safe Box
Ad Equipment
Analysis Instrument/electronic
Game Machine
Household Appliances
Electronic Door Lock

Specifications

The following specifications are only representative of one of our models. Other performance parameters can be customized according to customer requirements

Reduction Ratio

1 : 3

1 : 5

1 : 10

1 : 30

1 : 50

1 : 63

1 : 100

1 : 150

1 : 210

1 : 250

1 : 298

1 : 1000

MODEL	VOLTAGE		NO LOAD		AT MAXIMUM EFFICIENCY					STALL
	OPERATING RANGE	NOMINAL	SPEED	CURRENT	SPEED	CURRENT	TORQUE		OUTPUT	TORQUE		CURRENT
	OPERATING RANGE	NOMINAL	r/min	A	r/min	A	mN.m	g.cm	w	mN.m	g.cm	A
GM1024-N20VA-08260-150	3.0-6.0	5.0V	98	0.032	77.4	0.122	41.4	422.1	0.335	197.1	2010	0.46
GM1024-N20VA-08260-298	3.0-6.0	5.0V	48	0.040	36	0.130	82	840	0.335	392.1	4000	0.46
GM12F-N20VA-10155-100	3.0-6.0	6.0V	223	0.045	184	0.225	48.3	492	1.35	568	2900	1.10
GM12F-N20VA-10155-298	4.0-7.0	6.0V	75	0.045	62	0.225	144	1469	1.350	847	8642	1.10

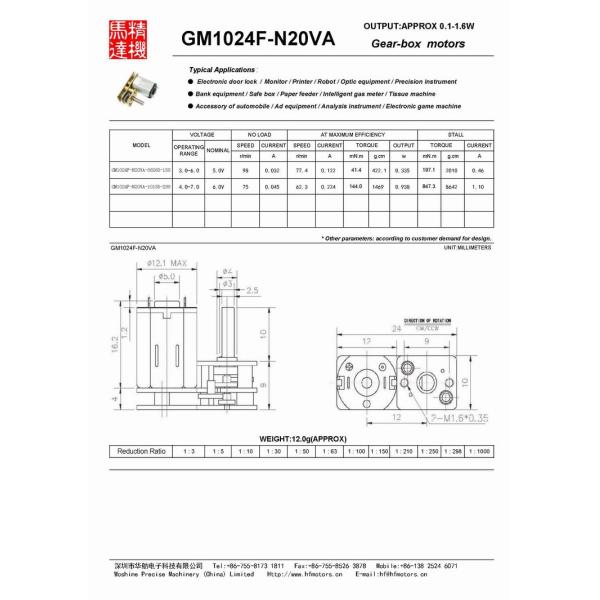

Drawing

Electronic Door Lock DC Worm Gear Motor , 5V DC Gear Motor High Precision

Product Details Show

Electronic Door Lock DC Worm Gear Motor , 5V DC Gear Motor High Precision

Production Equipment

Material Warehouse

Production workshop

Dust-free Production workshop

Test Equipment

Competitive Advantage

16 years experience in manufacturing motor and gearbox motor
Experienced Staff: average 12 years experience in R&D , ODM & OEM
International Approvals: ROHS/ISO9001/ISO14001/SGS/TS16949
Competitive Price
High Product Performance: Low noise, High efficiency, Long lifespan
Prompt Delivery: 20-25 working days after payment
Quality Approvals
Small Orders Accepted
Advanced equipments: Automatic winding machine, stator automatic setting machine, end cover automatic setting machine, automatic soldering machine, etc

Quality Cotrol Test

Reliability Test & Laboratory
Noise Test
Water-proof Test
Life Test
Impact Test
Storage Test
Salt Spray Test
Environmental Related Substance
